Cummins finalizing first metal, 3D-printed production part using binder jet technology
Cummins Inc. (NYSE: CMI) is finalizing its first production part using a new, high-precision 3D metal printing technology called binder jet. This marks a significant milestone in the company’s additive manufacturing and Industry 4.0 journey.

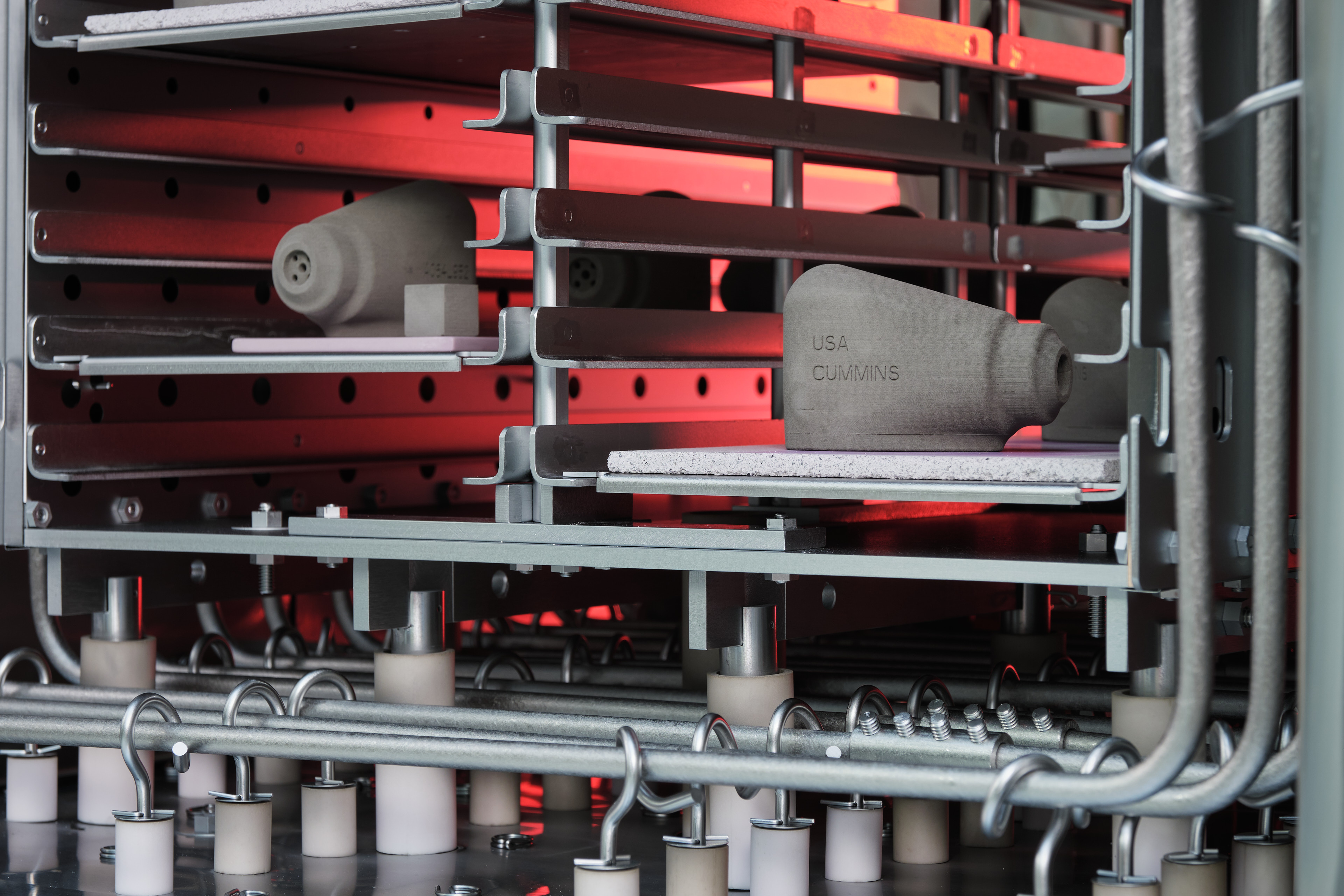

The part, a Cummins Emission Solutions (CES) lance tip adapter used in high horsepower engines, is now moving through Cummins’ production part approval process (PPAP) for formal approval. The lance tip adapter, a critical emissions component in Cummins engines, atomizes and injects diesel exhaust fluid into the engine exhaust stream to reduce the amount of nitrogen oxides (NOx) emitted from Cummins’ engine systems.
“This is incredibly exciting, as it signifies yet another significant milestone in our 3D and additive manufacturing roadmap,” said Tim Millwood, Vice President of Global Manufacturing. “We’re on the cusp of being able to leverage a broad range of additive technologies to print the parts we need, using the right technology and at lower costs and increased speeds.”
Producing this part through additive manufacturing provides several additional benefits, including a lighter-weight design, improved geometry for fluid and air flow, and the elimination of the added complexity of cross-drillings. The company hopes to have final approval of the part and to start official production later this year.
In April 2019, Cummins announced its investment in binder jet technology, where a print head moves across a bed of powdered metal and selectively deposits a liquid binding agent in the shape of the part cross section, bonding these areas together to form a solid part one layer at a time. Depending on the complexity of the part, the technology can print 60 to 100 times faster than other laser-based printing processes, allowing high-volume production with this technology.
Binder jet technology also has environmental benefits. Unlike traditional machining, the binder jet printer can take nearly 100% of the leftover powder from the printed part, recirculate it through the system and reuse it in the production of other parts.

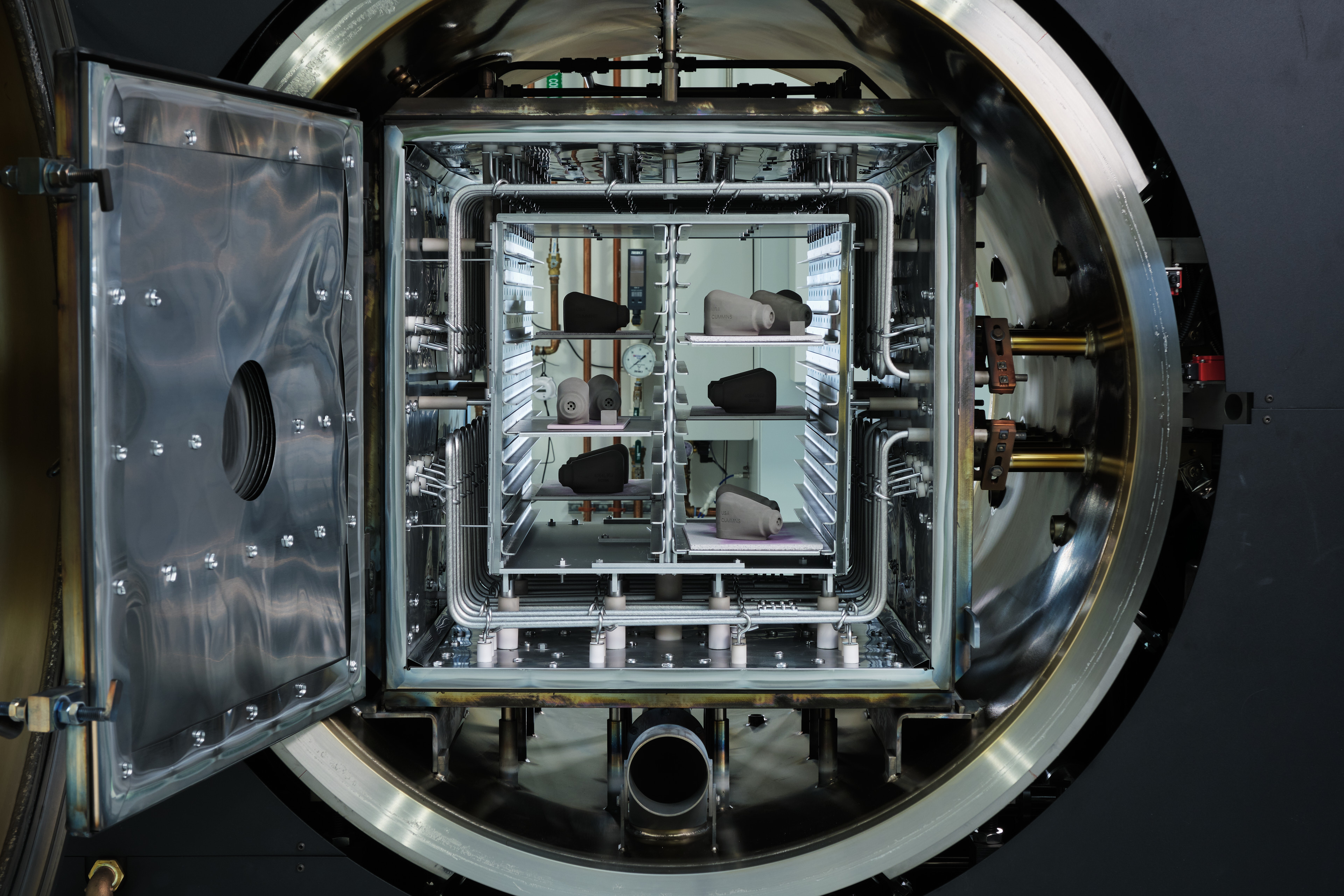

In 2020, Cummins established an Additive Manufacturing Lab within the company’s Manufacturing Engineering Development Center (MEDC) in Columbus, Indiana. The purpose of the lab is to develop and validate the industrialized binder jet additive manufacturing process. Cummins’ Engineering teams are taking this opportunity to gain experience and skillset in designing for additive manufacturing as the technology advances.

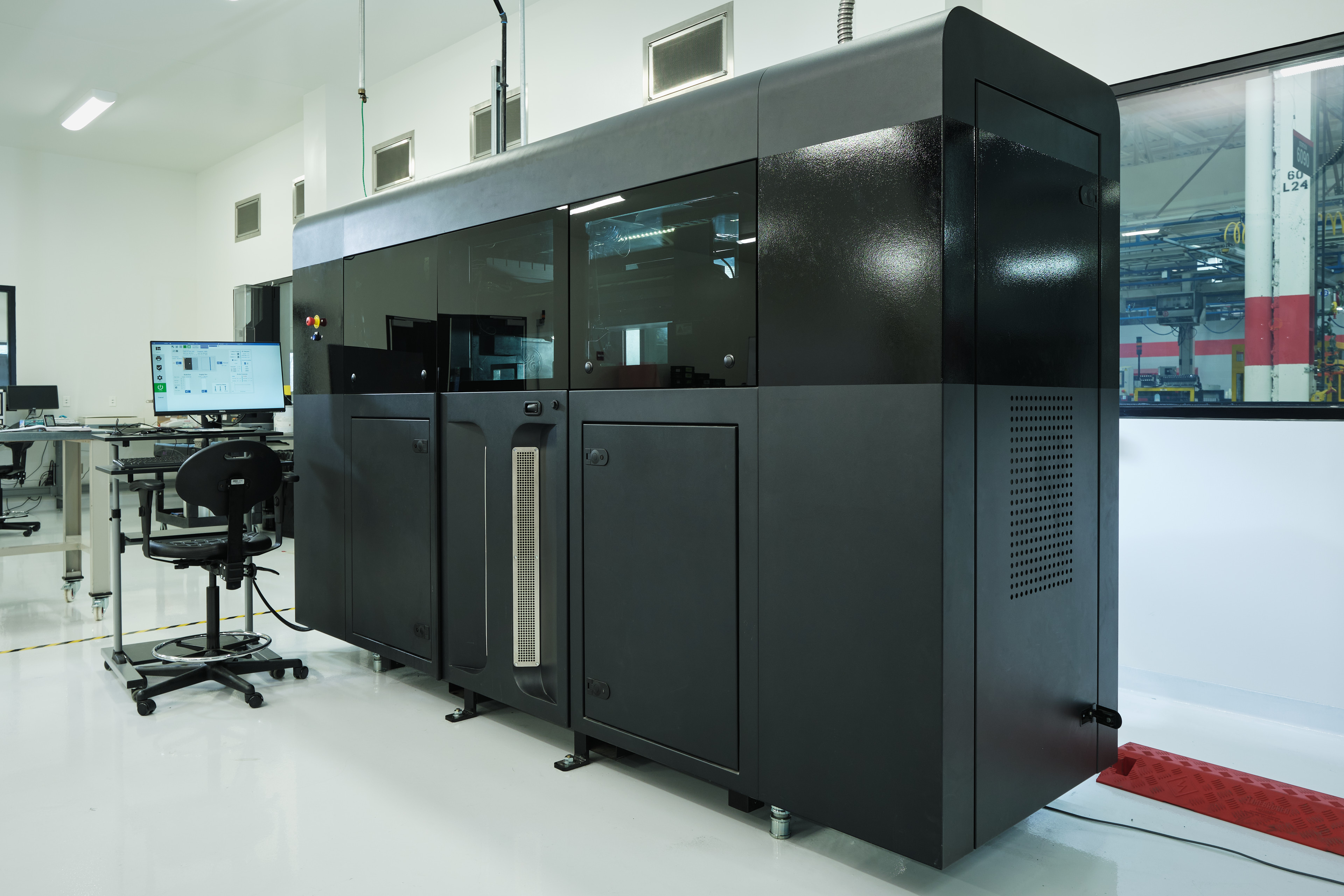

Currently, the Cummins Additive Manufacturing and Engineering teams are working on designing and printing several additional concept parts, with the hopes of finalizing more parts yet this year. Cummins currently has two second-generation binder jet printers, one at its Additive Manufacturing Lab in Columbus, Indiana and one at GE Additive’s Disruptive Innovation Lab near Cincinnati, Ohio.
Cummins and GE Additive are actively partnering to develop third-generation binder jet technology, which will support an industrialized solution with even higher throughput, improved quality and lower cost.
“This is the first of many milestones. The focus of our partnership is to productionize applications at cost, quality and needed scale. We are proud to work with Cummins to develop additive technology and provide meaningful return on investment throughout its supply chains,” said Jacob Brunsberg, Binder Jet product line leader, GE Additive.
A SUITE OF ADDITIVE TECHNOLOGIES
Binder jet printing is just the latest in Cummins’ advancement in this space.
Cummins Engineering and Manufacturing teams have printed using polymer (plastic and resin) for years and are continuing to make great progress in low-volume metal printing. These technologies include three GE Additive Concept Laser M2 DMLM machines – one is installed at the Cummins Technical Center in Columbus, Indiana, and the other two are installed at the large Cummins Research and Development Center in San Luis Potosi (SLP), Mexico. Cummins also leverages sand printing technologies at its center in SLP to make molds for components.
The cost and cycle times of these machines make them well-suited for producing parts for Cummins’ aftermarket customers and those needed in low volumes. Since selling the first metal 3D-printed part in 2019, Cummins has approved 20 part numbers and shipped nearly 350 parts using their suite of additive technologies.
Over the next several years, Cummins, alongside GE Additive as its strategic partner, will continue to improve its capabilities, speed-to-market and productivity of its additive processes.
Cummins Inc., a global power technology leader, is a corporation of complementary business segments that design, manufacture, distribute and service a broad portfolio of power solutions. The company’s products range from internal combustion, electric and hybrid integrated power solutions to components including filtration, aftertreatment, turbochargers, fuel systems, controls systems, air handling systems, automated transmissions, electric power generation systems, microgrid controls, batteries, electrolyzers and fuel cell products. Headquartered in Columbus, Indiana (U.S.), since its founding in 1919, Cummins employs approximately 73,600 people committed to powering a more prosperous world through three global corporate responsibility priorities critical to healthy communities: education, environment and equality of opportunity. Cummins serves its customers online, through a network of company-owned and independent distributor locations, and through thousands of dealer locations worldwide and earned about $2.2 billion on sales of $28.1 billion in 2022.
